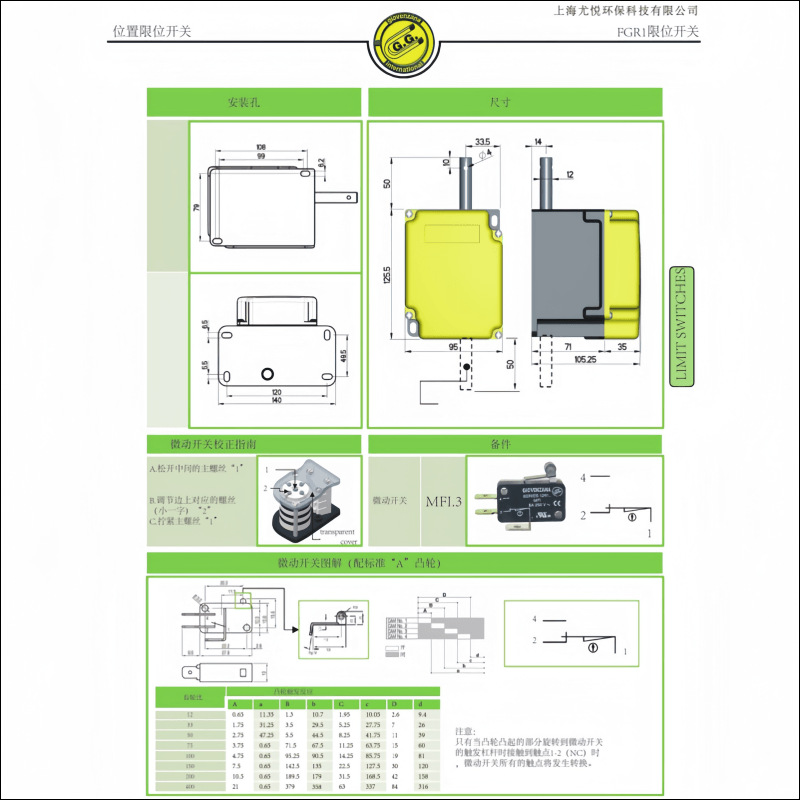

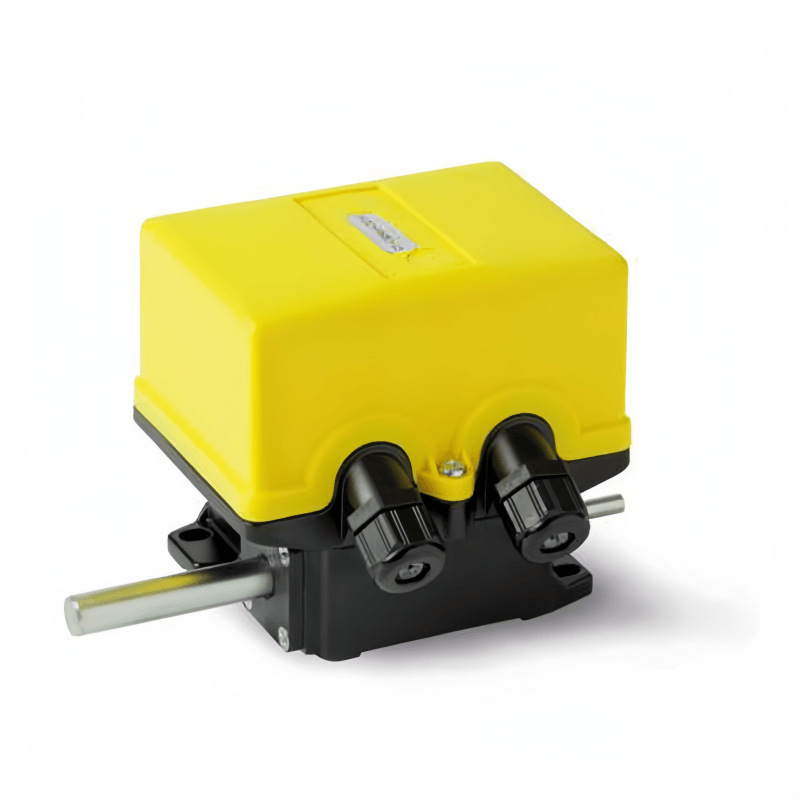

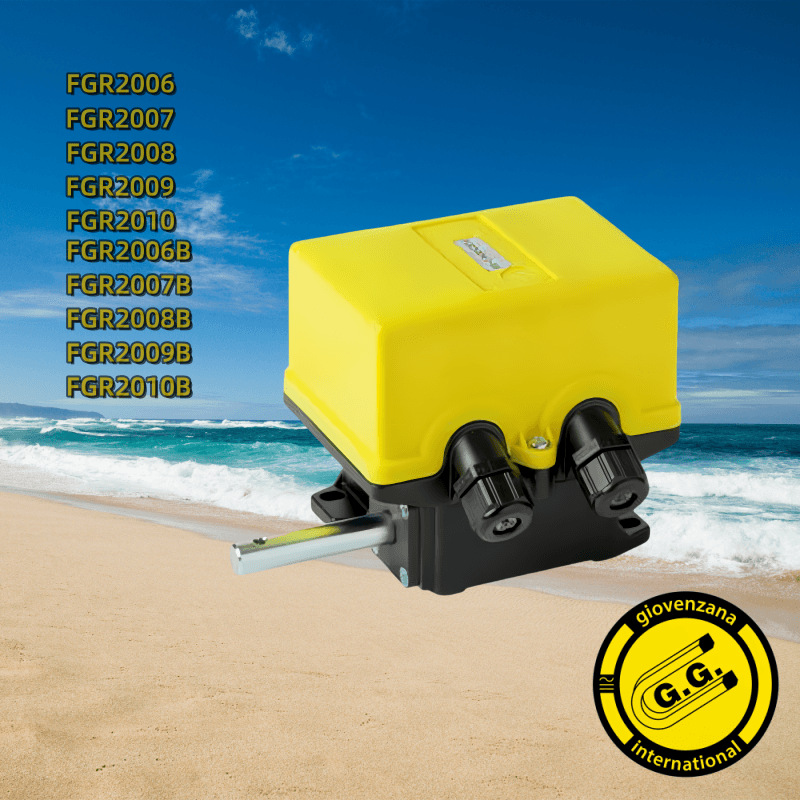

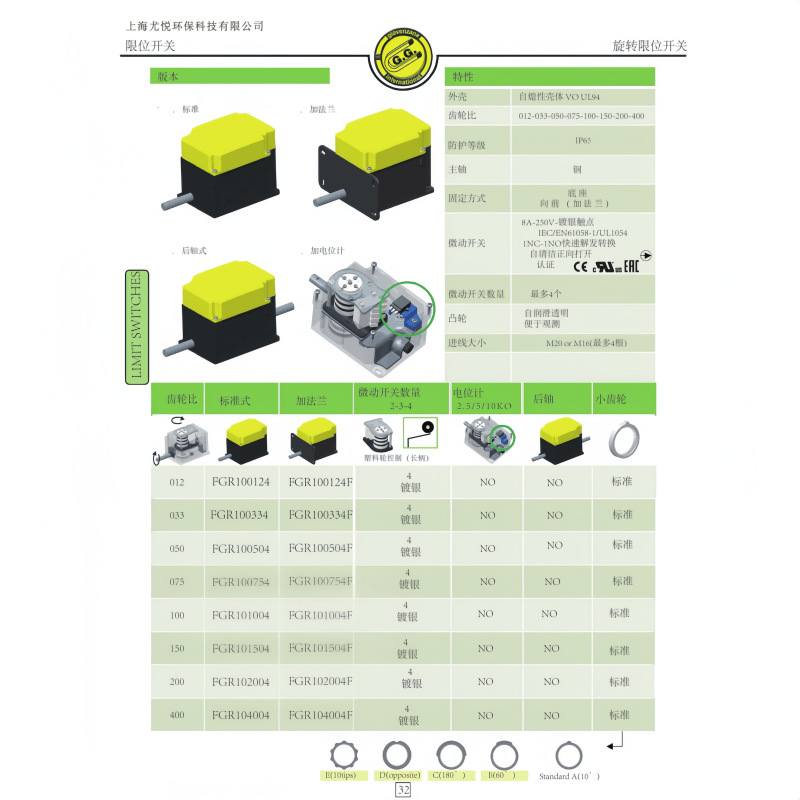

[ 商业 ] 原装意大利GG旋转齿轮限位开关FGRN2008 2009起升高度限位器

1、功能介绍：

   范围限于吊锁缠索轮、机器等，该类旋转机件提供有一个微量调整工具可依据不同要求分别开启或闭合触点，FGR.B版本配有一个使用编码器的同心轴

2、技术参数：

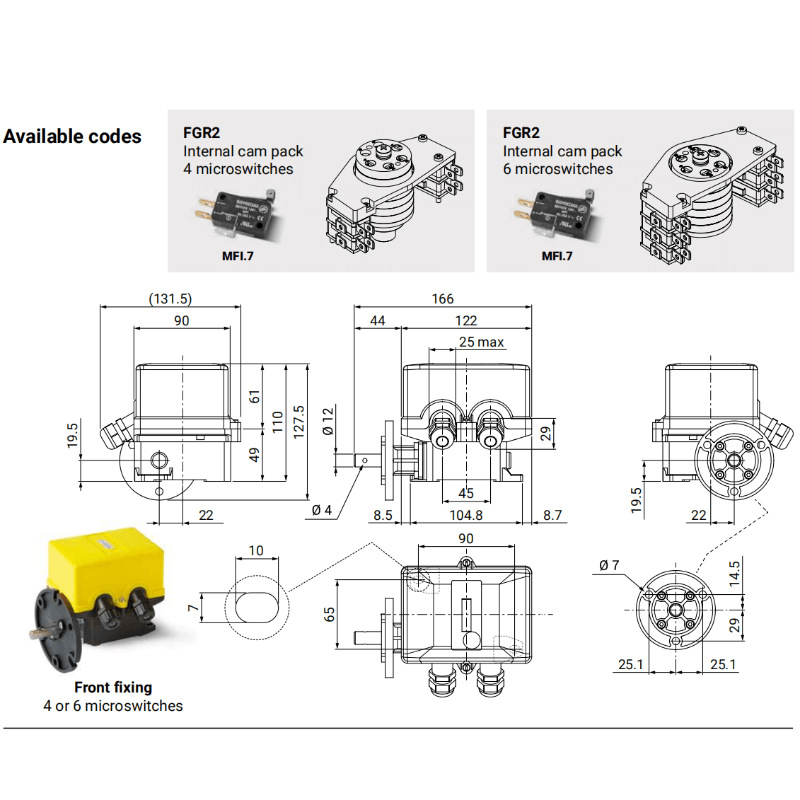

标准版本

凸轮/驱动轴

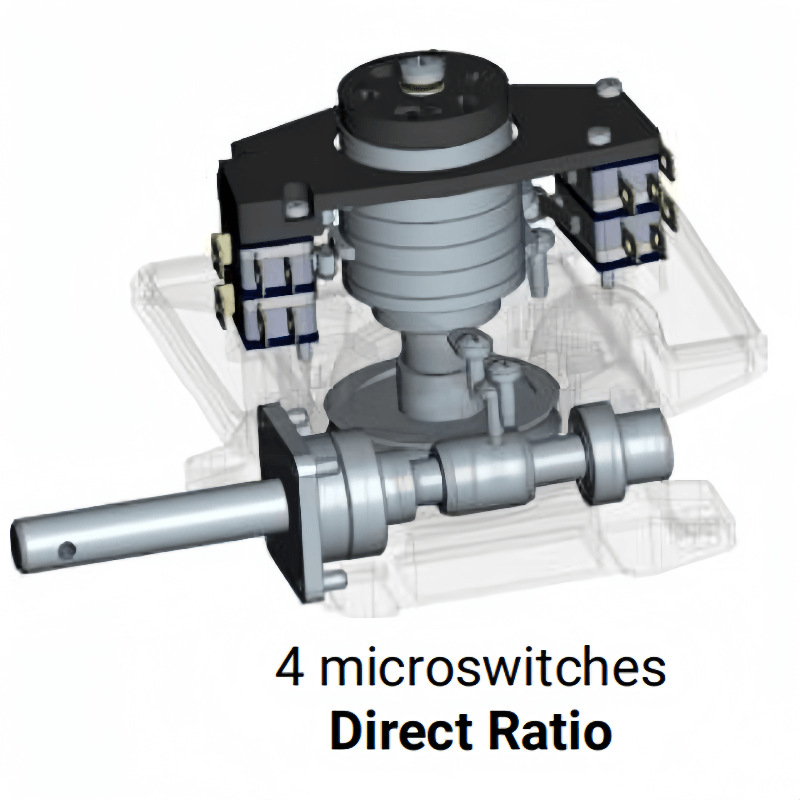

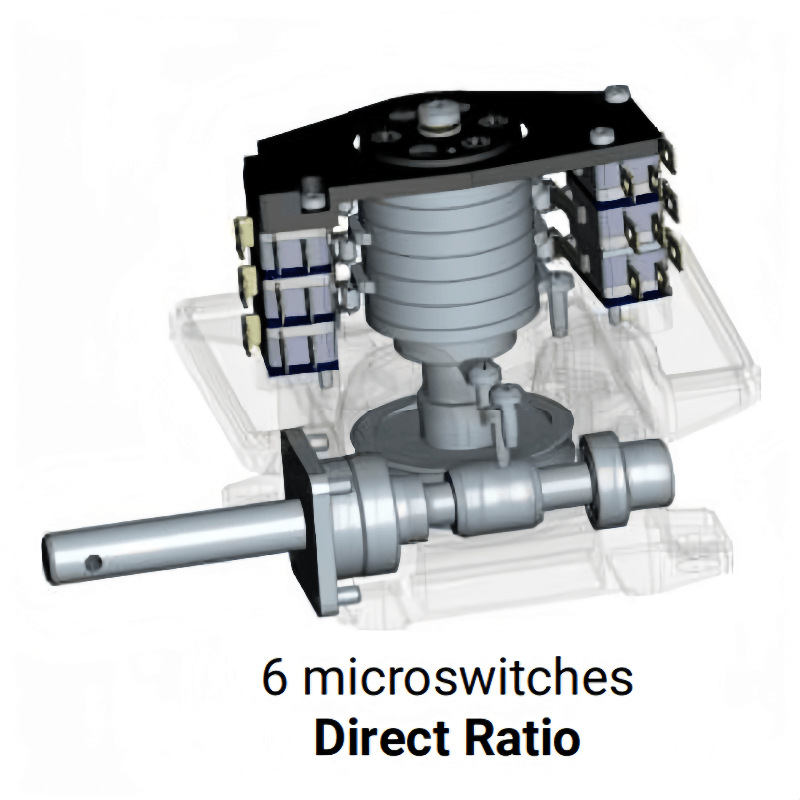

REV比                      带有4个微型开关              带有6个微型开关              重量G               最小包装数量

1/12                          FGR2006                         FGR20006                  1.100                     1

1/33                          FGR2007                         FGR20076                   1.100                    1

1/50                          FGR2008                         FGR20086                   1.100                    1

1/100                        FGR2009                         FGR20096                   1.100                    1

1/200                        FGR2010                         FGR20106                   1.100                    1

同心轴版本

凸轮/驱动轴

REV比                      带有4个微型开关              带有6个微型开关                重量G               最小包装数量

1/12                          FGR2006B                      FGR2006B6                   1.100                     1

1/33                          FGR2007B                       FGR2007B6                   1.100                    1

1/50                          FGR2008B                       FGR2008B6                   1.100                    1

1/100                        FGR2009B                       FGR2009B6                   1.100                    1

1/200                        FGR2010B                       FGR2010B6                   1.100
